Setup Agent Vault with Hermes Agent and LM Studio on Local Env

Versions

OS: macOS Tahoe
Colima
- client: v29.5.2
- server: v29.6.1
Hermes Agent: v2026.7.7.2 (container image tag)
Agent Vault: 0.39.0 (container image tag)
LM Studio: 0.4.19+2

Notes

Hermes Agent and Agent Vault will run on local containers.
The LLM will run on LM Studio.
As for the container runtime,
- I used Colima as a container runtime. I believe that other container runtimes like Docker Desktop or Podman Desktop will be okay. But one thing you should be aware of is the hostname to reach the host machine from containers.
  - In my case, if I use host.docker.internal to the Agent Vault client, the server fails to forward the request with the following error:
```
time=2026-07-14T05:04:28.697Z level=DEBUG msg="upstream request failed" vault_id=47f4cd48-14d4-4197-833d-97d727d58c8b vault_name=my-project target_host=169.254.169.254:80 error="netguard: connection to 169.254.169.254 (169.254.169.254) blocked by network policy"
time=2026-07-14T05:04:28.697Z level=DEBUG msg=proxy_request ingress=mitm method=GET host=169.254.169.254:80 path=/latest/meta-data/iam/security-credentials/ matched_service="" matched_host="" matched_path="" matched_port=<nil> credential_keys=[] status=502 total_ms=0 err=upstream_error passthrough=true
```
- In this article, I used both host.docker.internal and host.lima.internal. I tried to use host.docker.internal, which seems universal over the other runtimes. But in a specific case, host.docker.internal didn’t work. So I had to use host.lima.internal instead.
- If there’s something wrong, make sure that these host names are appropriate to your container runtime.

Procedures

Run LM Studio and load an LLM

Open LM Studio and move to the Developer tab.

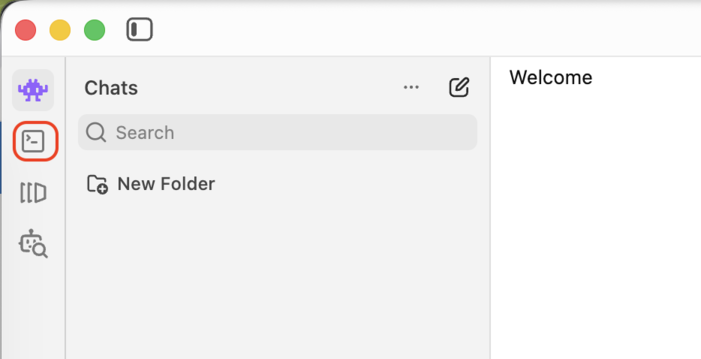

LM Studio - Left Pane

Run the server by clicking the toggle and clicking the Manage Tokens button.

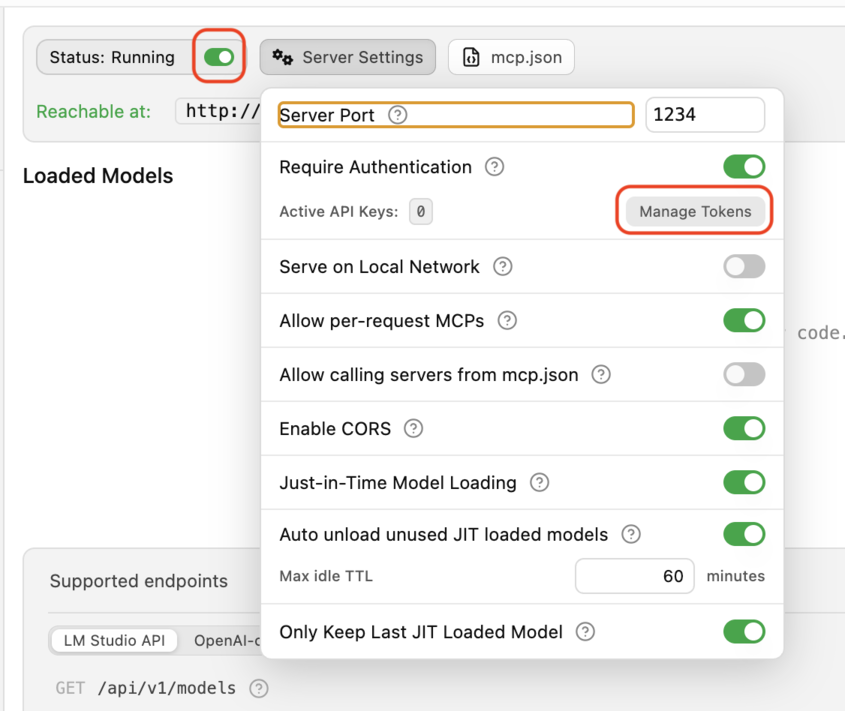

LM Studio - Server Settings

Click Create new token.

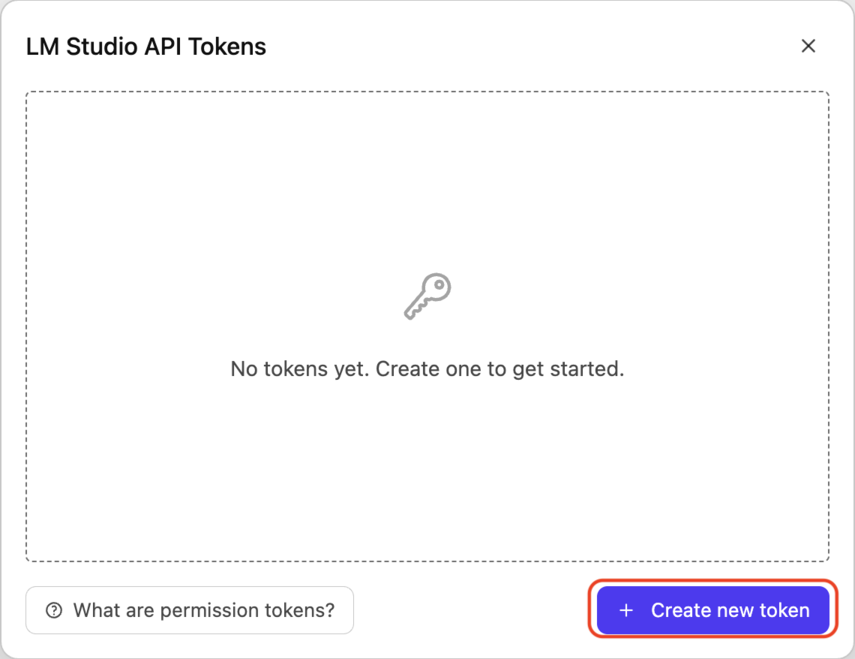

LM Studio - LM Studio API Tokens

Click Create token. You can specify its name if you want.

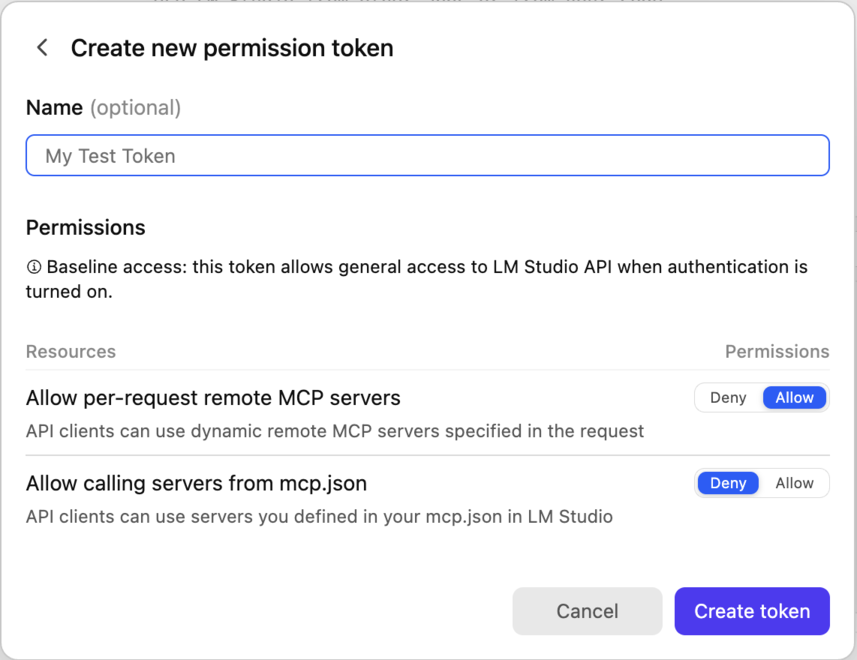

LM Studio - Create new permission token

Copy the token and paste it somewhere. You need it later.

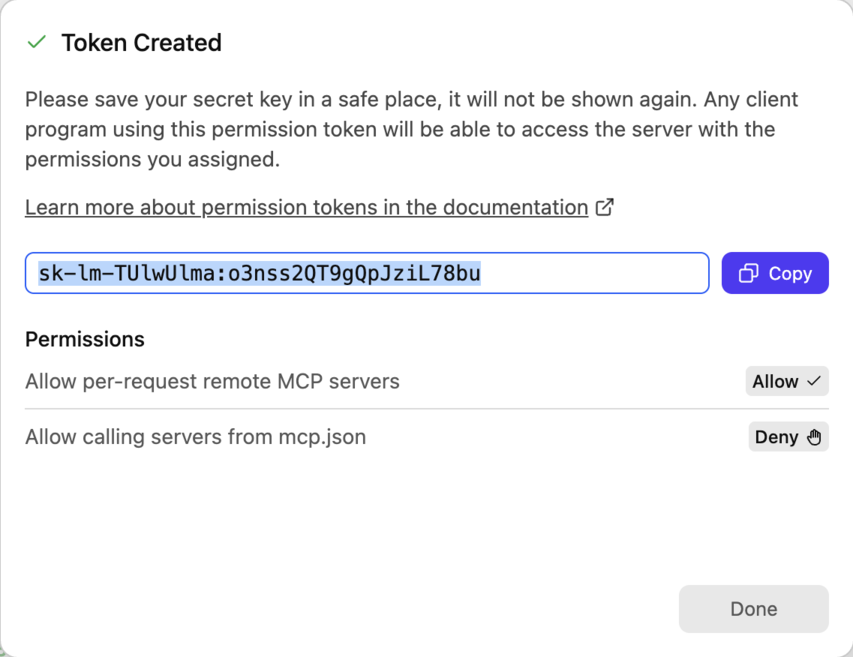

LM Studio - Token Created

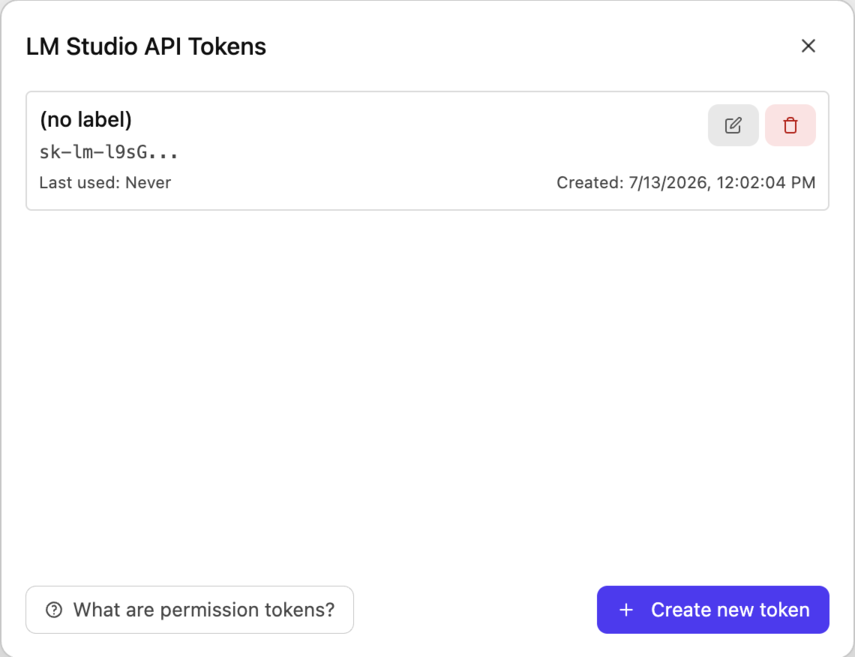

LM Studio - LM Studio API Tokens (After)

Run and Configure Agent Vault

Run Agent Vault.

docker run -it -p 14321:14321 -p 14322:14322 \
  -e AGENT_VAULT_MASTER_PASSWORD=your-password \
  -e AGENT_VAULT_ADDR="http://localhost:14321" \
  -e AGENT_VAULT_ALLOW_PRIVATE_RANGES=true \
  -e AGENT_VAULT_LOG_LEVEL="debug" \
  -v agent-vault-data:/data \
  infisical/agent-vault:0.39.0

Notes on some parameters:

-e AGENT_VAULT_ALLOW_PRIVATE_RANGES=true: It’s necessary if you want Agent Vault to connect to local servers.
-e AGENT_VAULT_LOG_LEVEL="debug": The default log level will not give you enough information for debugging.

Open a web browser and go to http://localhost:14321.

Then, create an account.

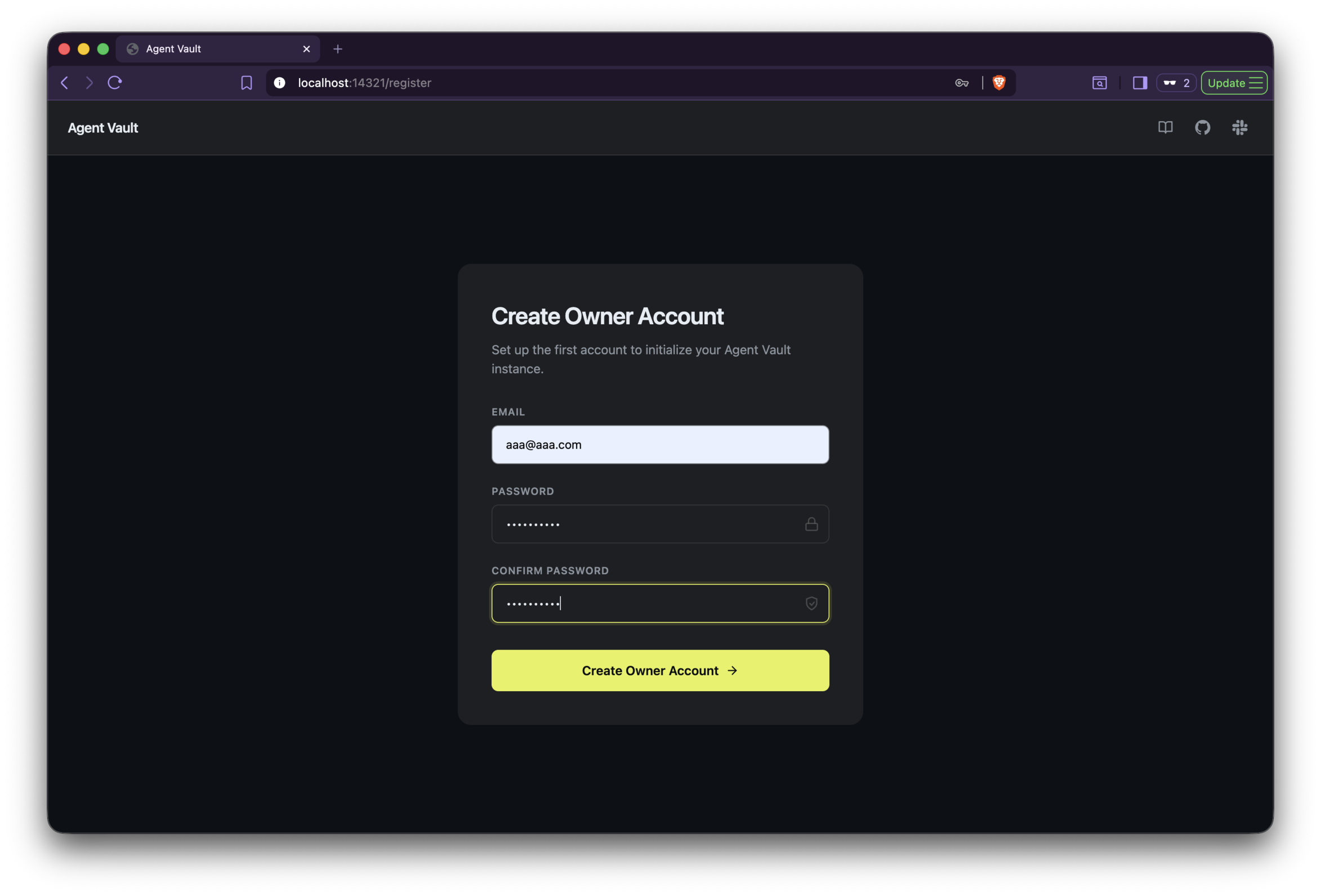

Agent Vault - Create Owner Account

Skip installing the CLI.

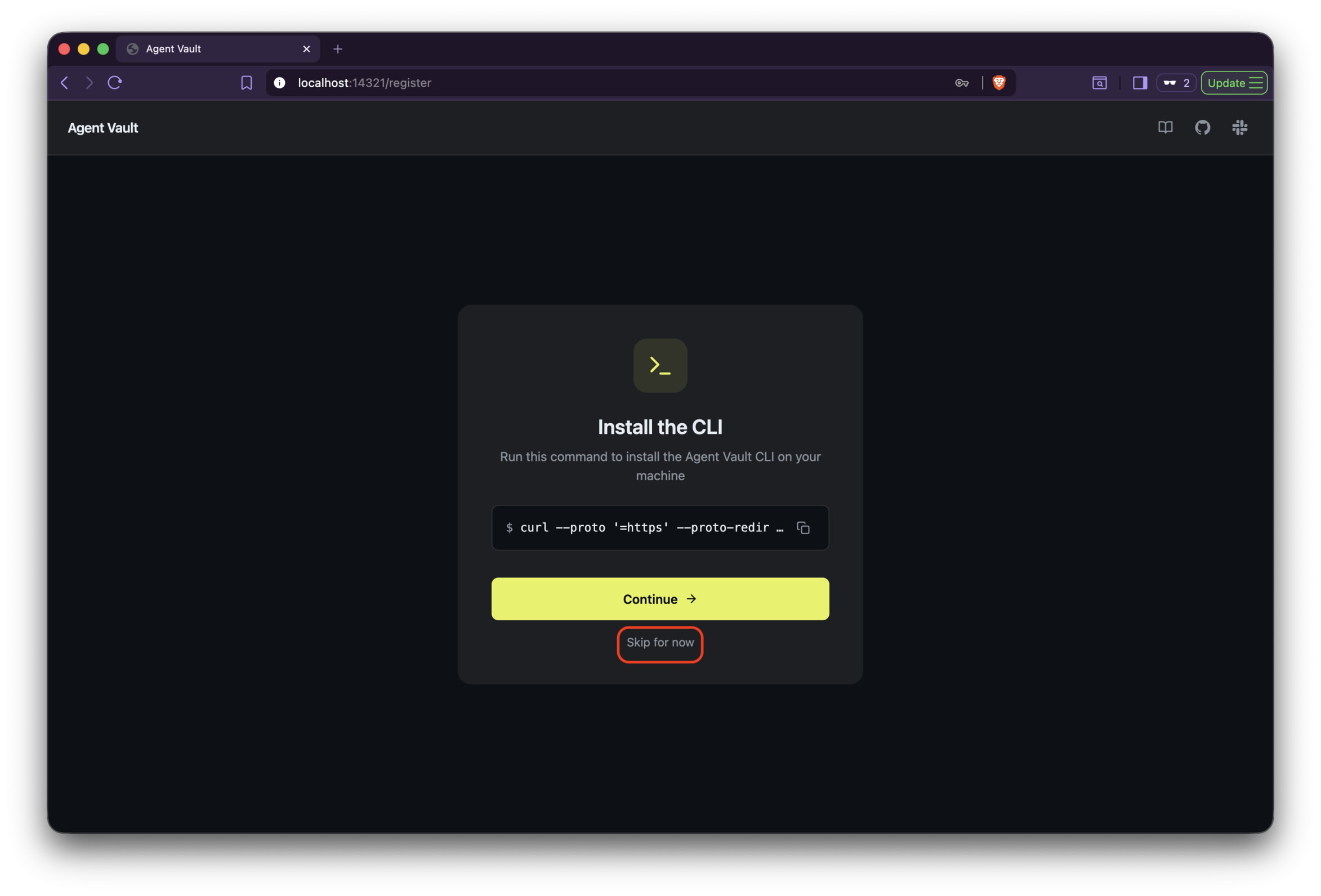

Agent Vault - Install the CLI

Click the New vault button.

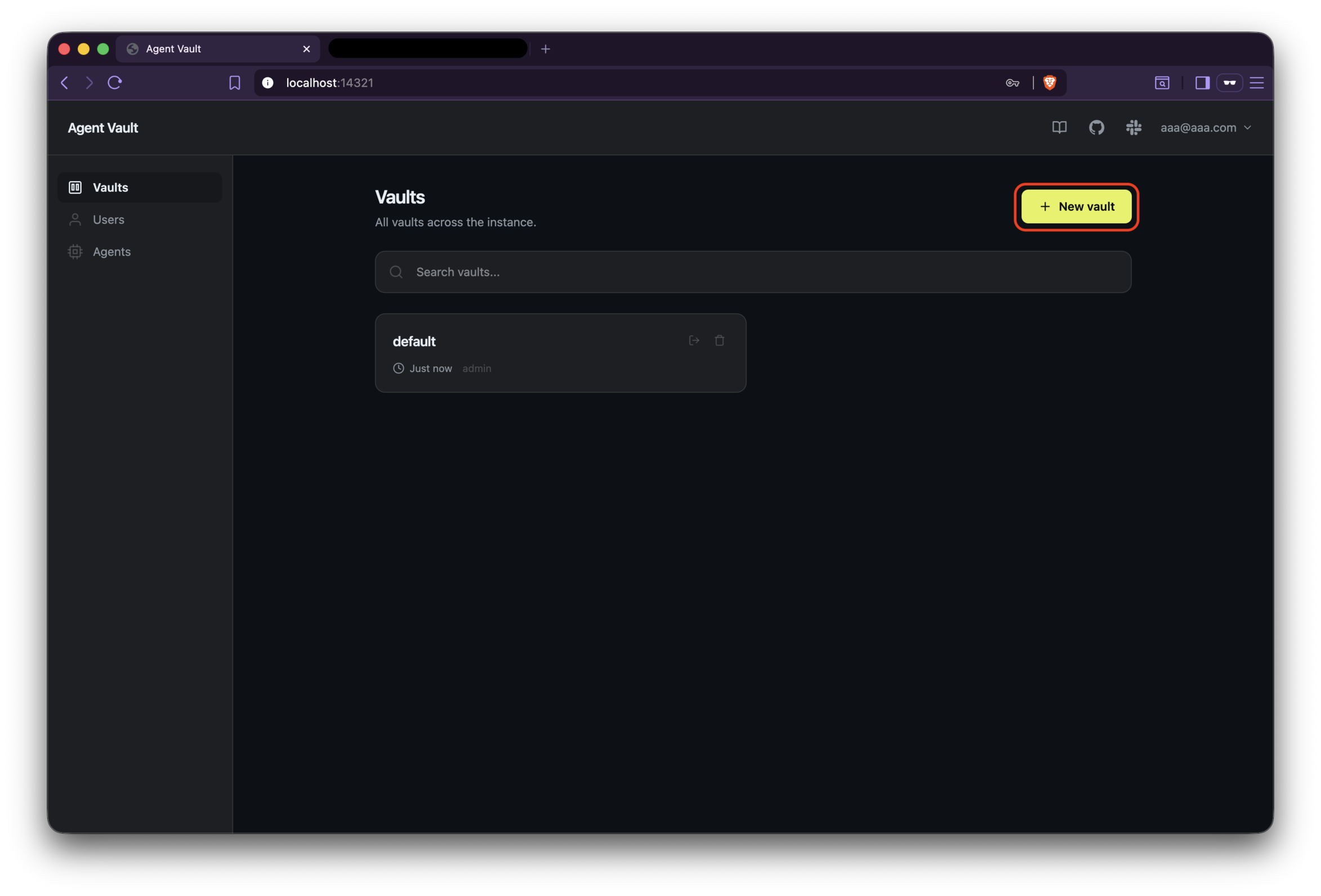

Agent Vault - Vaults

Set the fields as below and click the Create button:

VAULT NAME: my-project
CREDENTIAL STORE: Built in (default)

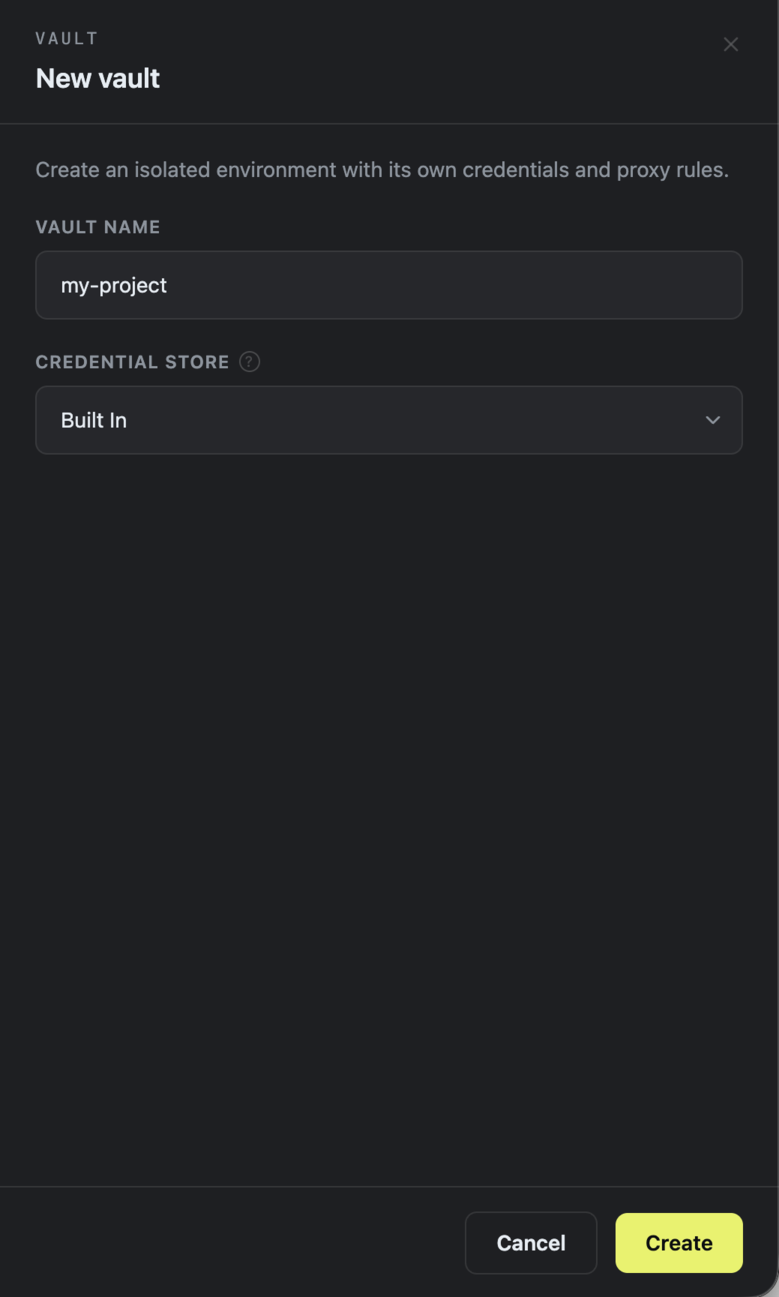

Agent Vault - New vault

After clicking the button, you are now in the Vault page you’ve created.

Click Credentials on the left pane, and then click the Add credential button.

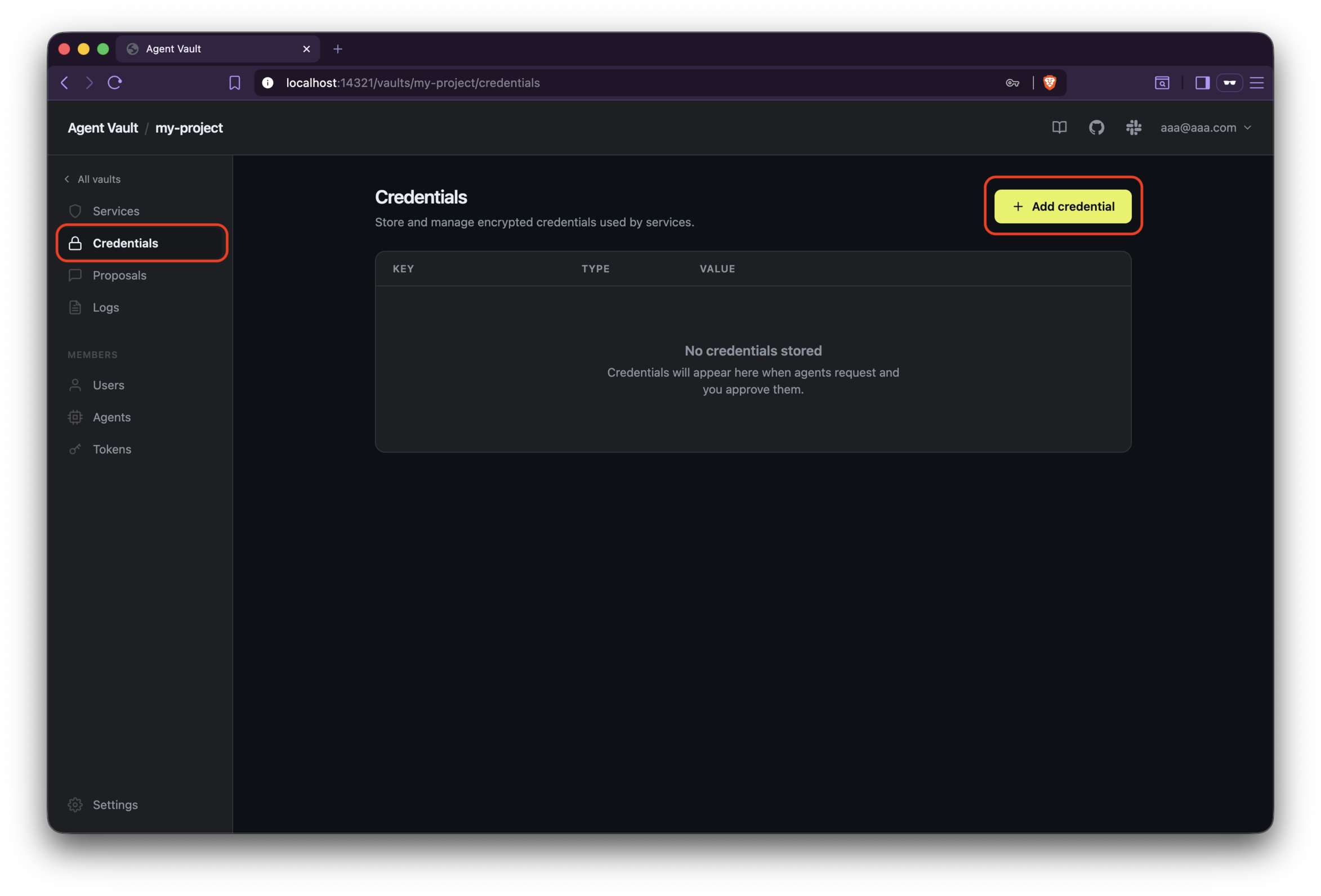

Agent Vault - Credentials

Set the fields as below and click the Add button:

KEY: LM_STUDIO_TOKEN
VALUE: the token you generated in LM Studio

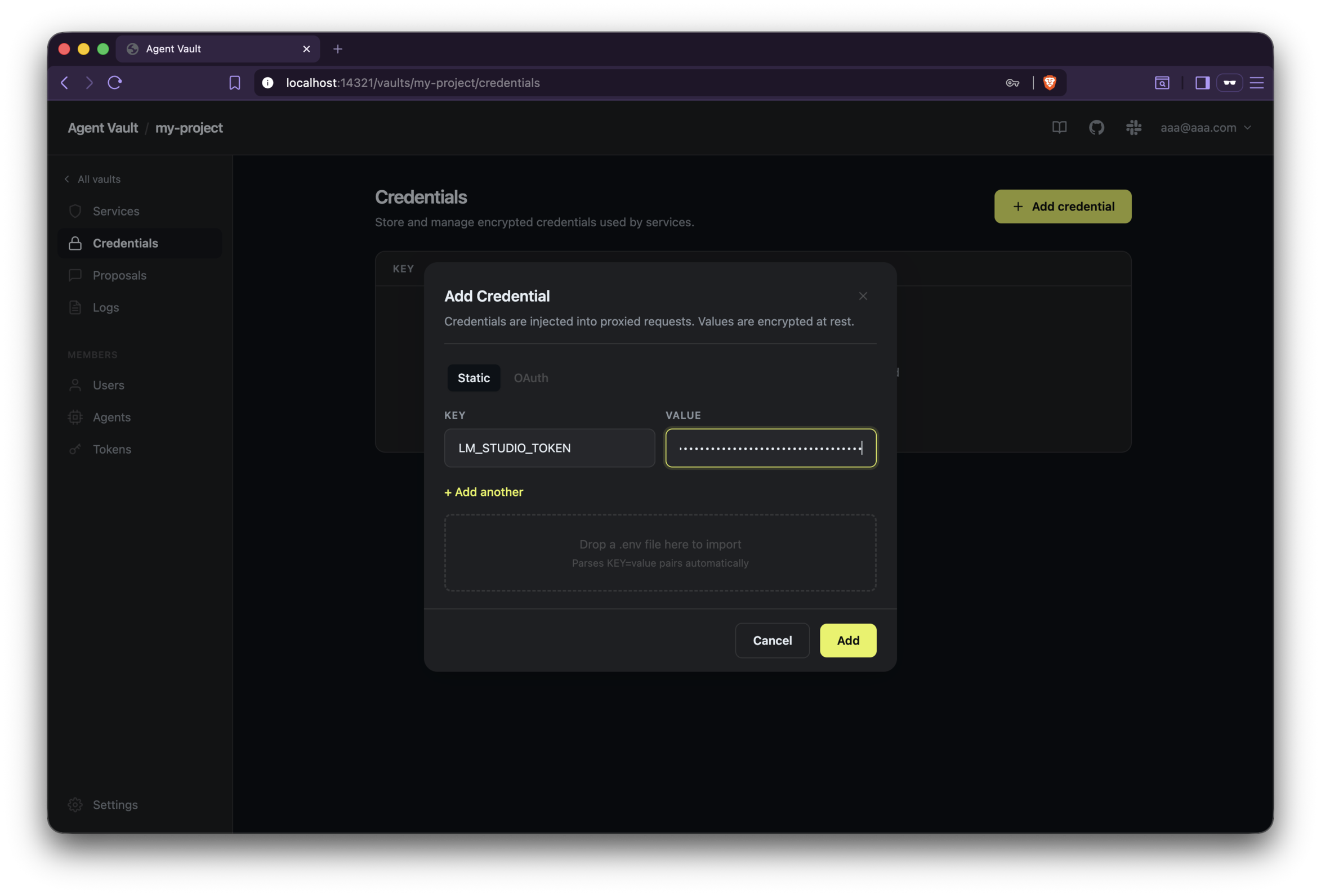

Agent Vault - Add Credentials

After clicking the button, you will see the credential you’ve created listed.

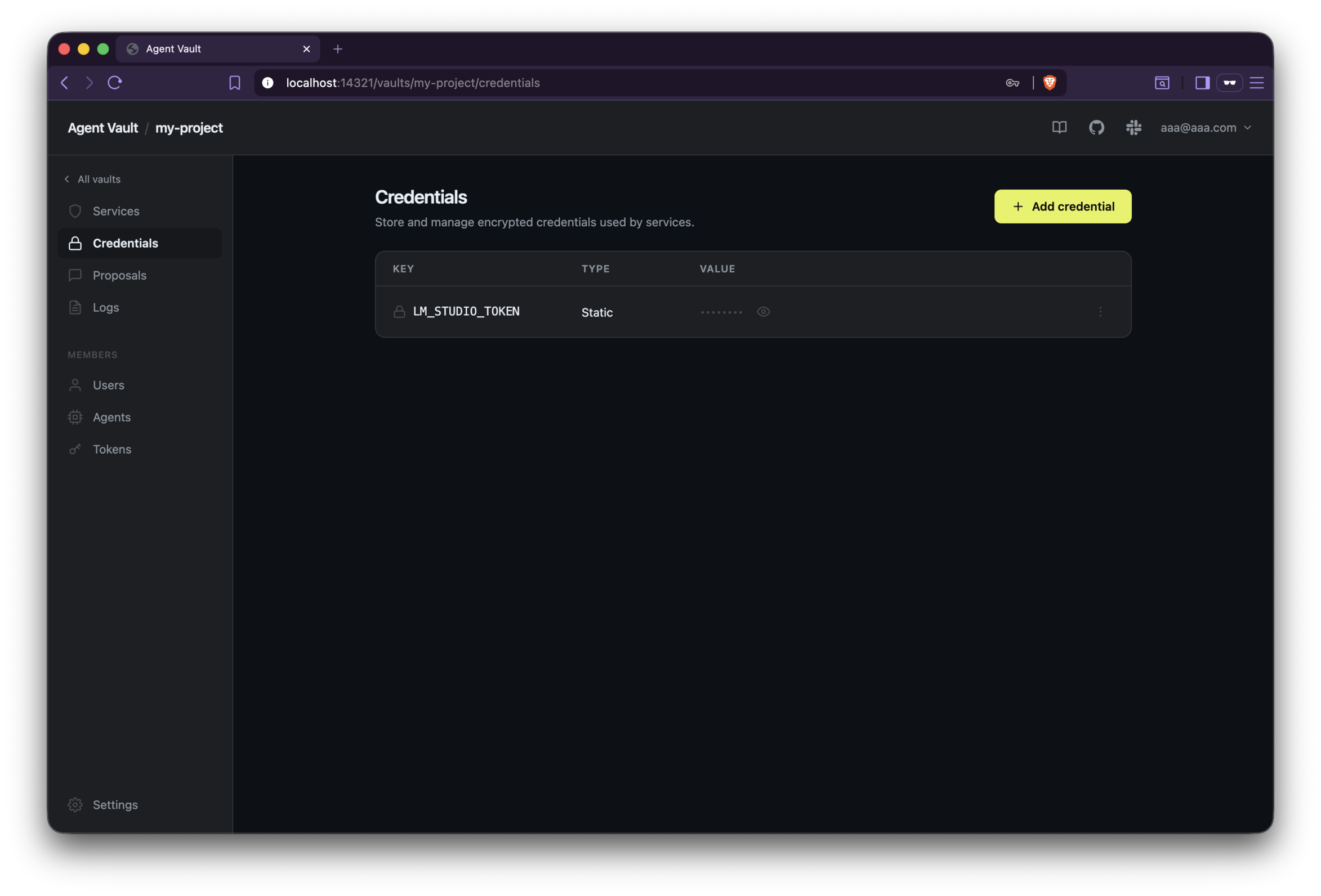

Agent Vault - Credentials (After)

Click Services on the left pane, and then click the Add service button.

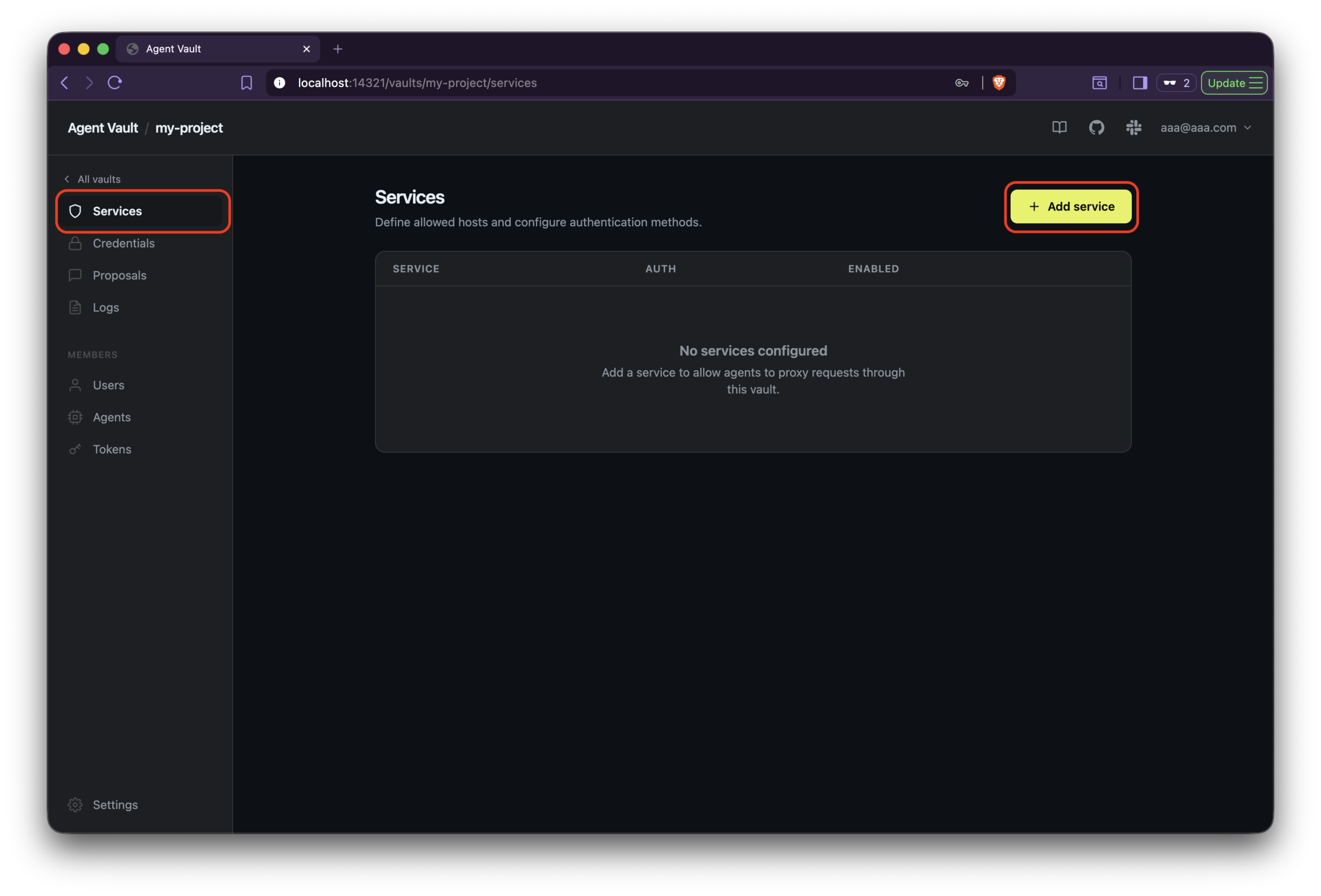

Agent Vault - Services

Set the fields as below:

NAME: hermes-agent
HOST PATTERN: host.lima.internal:1234

After filling the fields, click Passthrough and Add substitution.

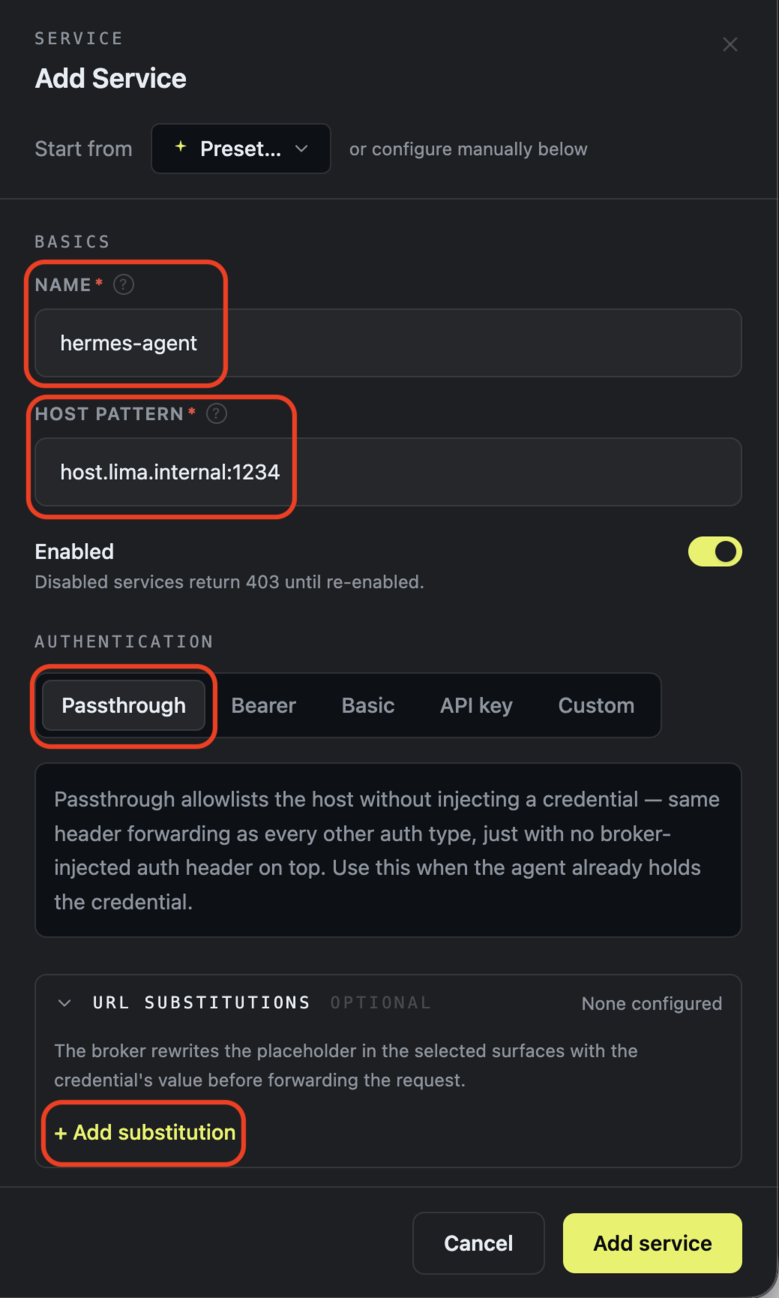

Agent Vault - Add Service 1

Set the configs as below:

between Replace and in: __lm_studio_token__
- This value will be used when you configure the Hermes Agent’s LLM provider.
between in and with value of: header
- Only header should be brightened. You can toggle it by clicking it.
  - When Hermes Agent sends a request to LM Studio, the agent includes the token in the request’s header.
after with value of: LM_STUDIO_TOKEN
- This is what you created in the Credentials page.

And then, click the Add service button.

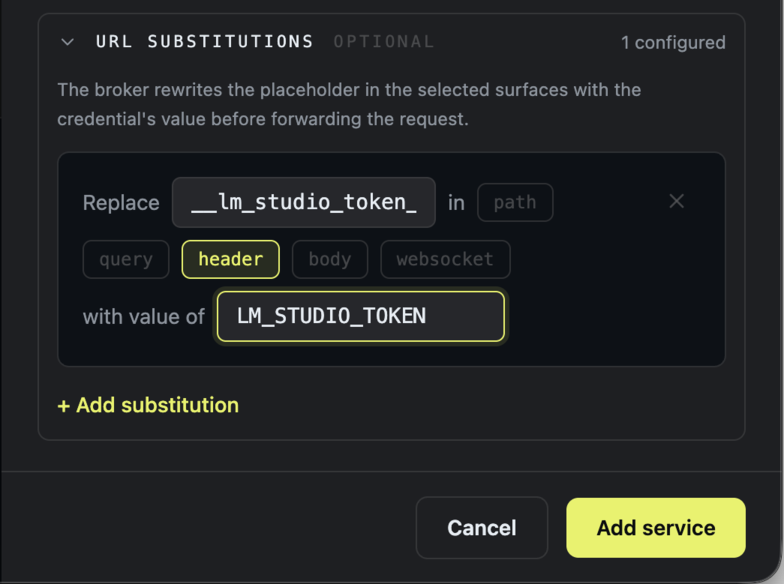

Agent Vault - Add Service 2

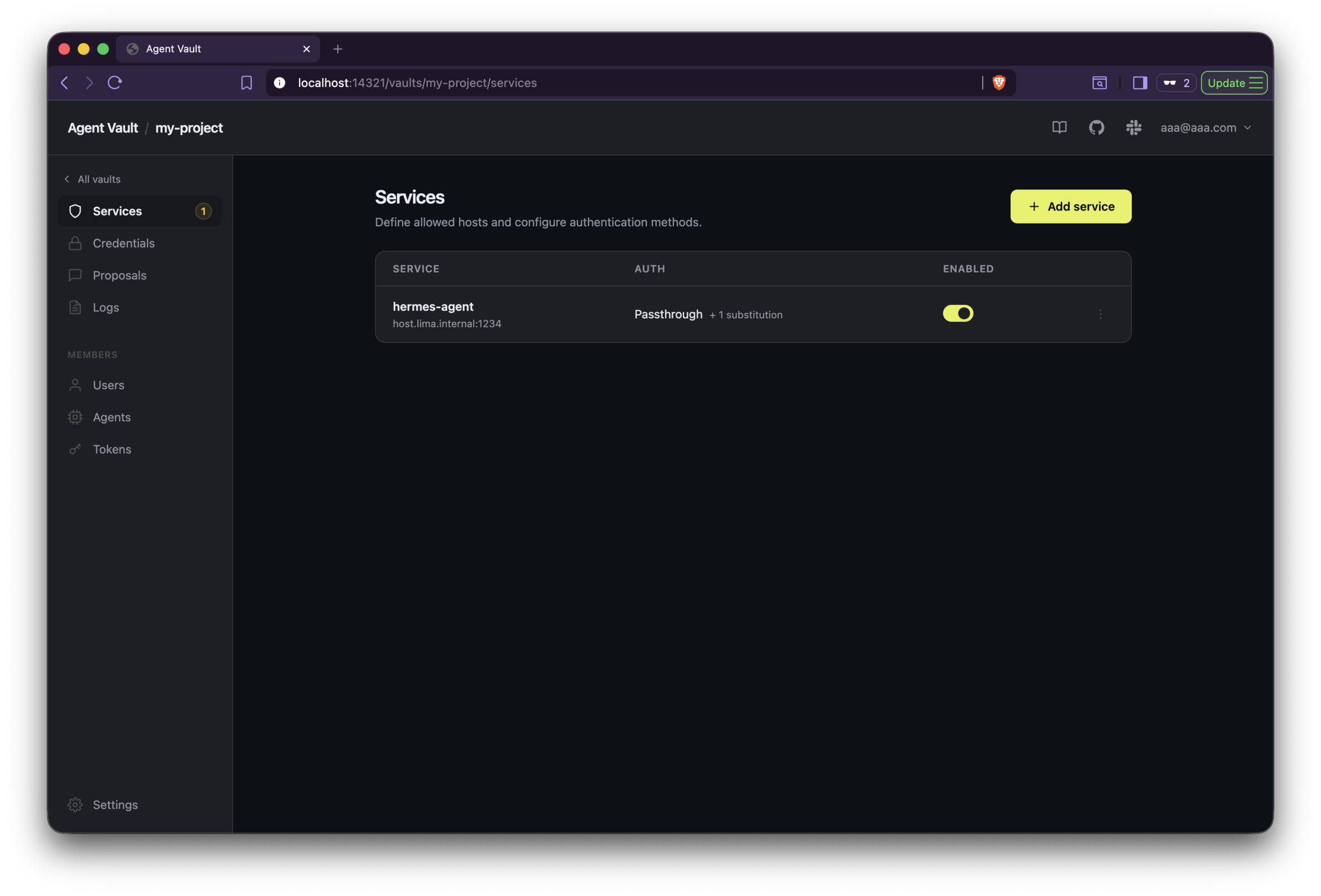

Agent Vault - Services (After)

Click the Agent Vault in Agent Vault / my-project on the left upper side.

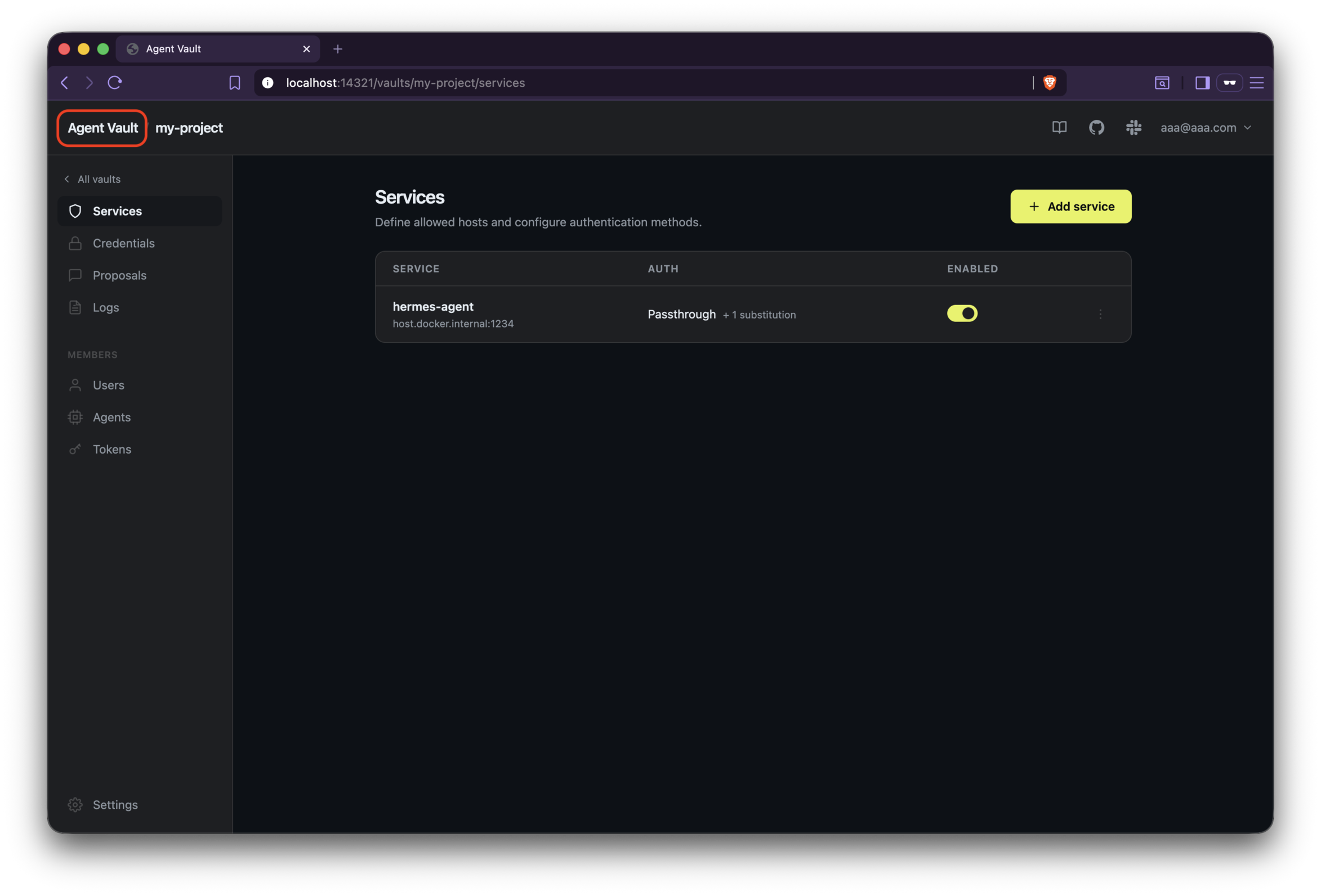

Agent Vault - Path

Click Agents on the left pane, and then click the Add agent button.

Agent Vault - Agents

Set the fields as below and click the Add button:

AGENT NAME: hermes-agent
INSTANCE ROLE: No Access (default)
VAULT ACCESS: my-project, Proxy (default)

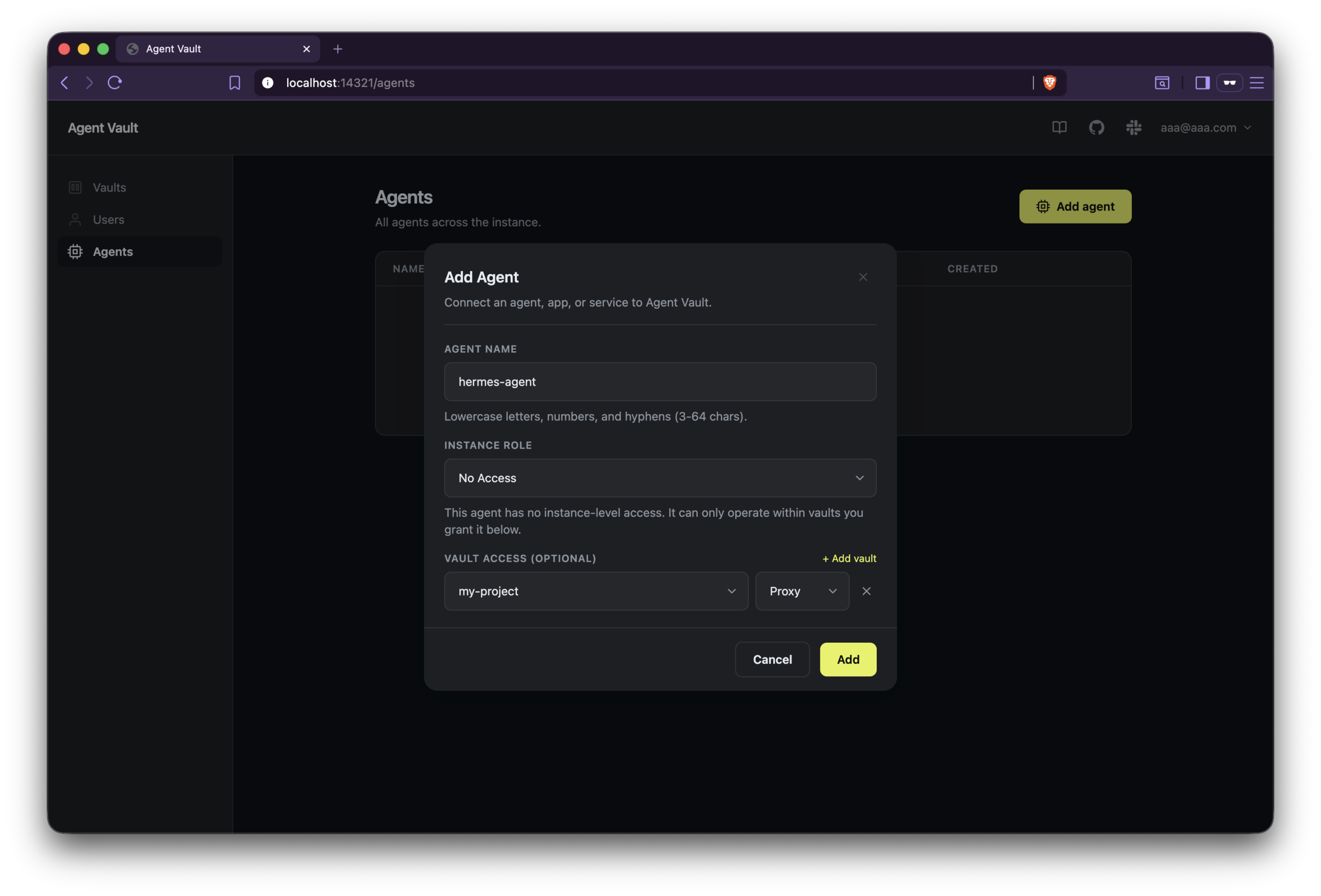

Agent Vault - Add Agent

Copy commands in Set environment variables and paste them to somewhere. You need them when running Hermes Agent.

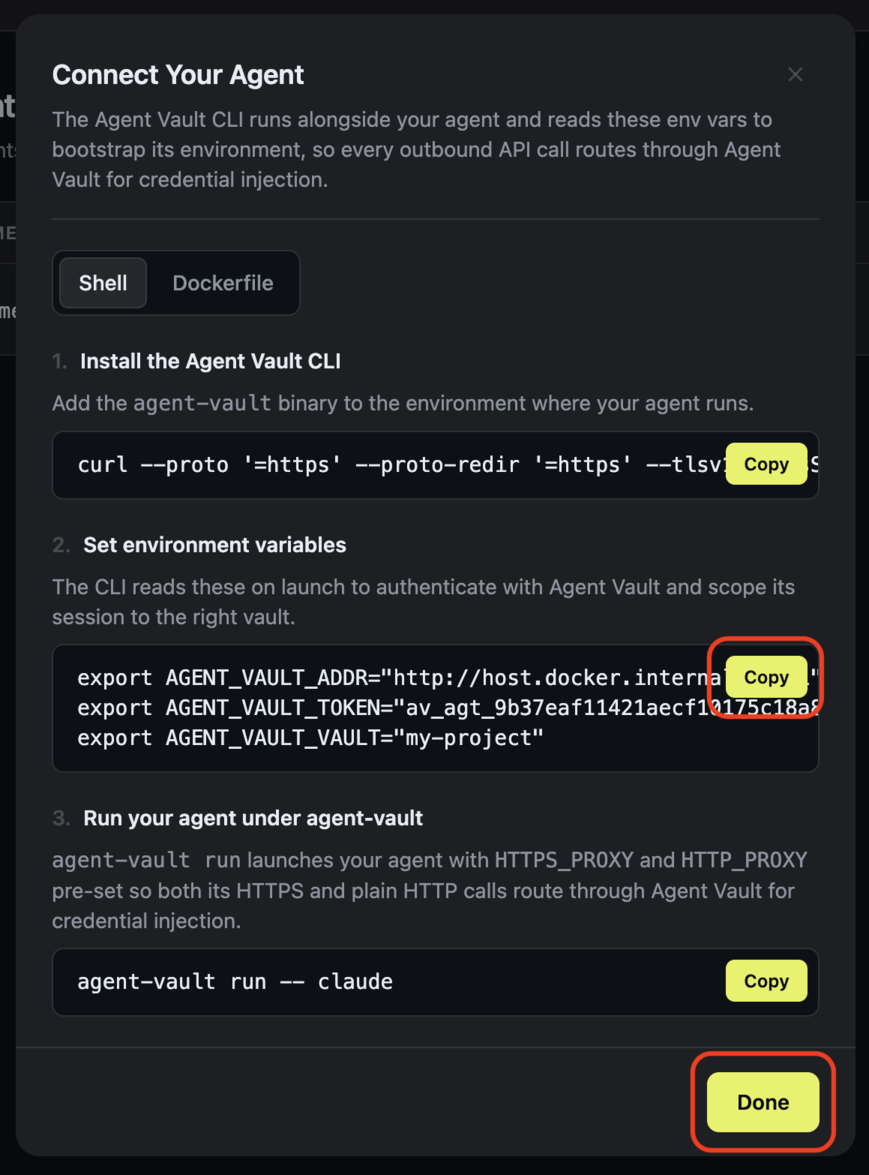

Agent Vault - Connect Your Agent

Click the Done button.

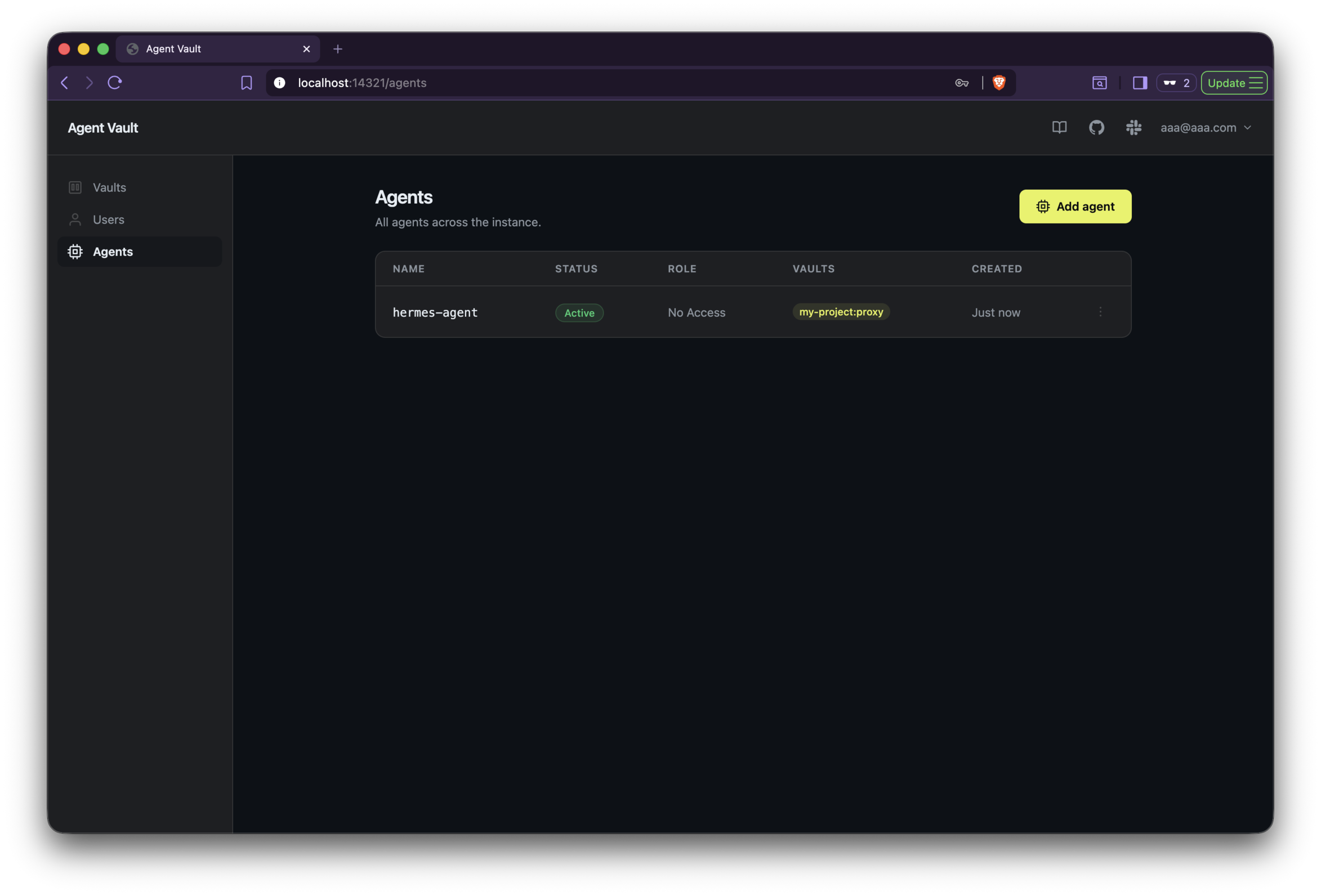

Agent Vault - Agents (After)

Build the Hermes Agent Container Image for Agent Vault

Hermes Agent should be run with Agent Vault.

So, build a Hermes Agent container image containing Agent Vault.

Create a Dockerfile as below:

FROM nousresearch/hermes-agent:v2026.7.7.2

COPY --from=infisical/agent-vault:latest /usr/local/bin/agent-vault /usr/local/bin/agent-vault

USER hermes

ENTRYPOINT ["agent-vault", "run", "--", "hermes"]

If you don’t set the user(USER hermes), you will have a permission issue later.

Build the image:

docker build -t hermes-agent-vault .

Setup and Run Hermes Agent

Setup Hermes Agent.

docker run -it --rm \
  -e AGENT_VAULT_ADDR="http://host.docker.internal:14321" \
  -e AGENT_VAULT_TOKEN="<AGENT_VAULT_TOKEN>" \
  -e AGENT_VAULT_VAULT="my-project" \
  -v hermes-agent:/opt/data \
  hermes-agent-vault setup

Notes on some parameters:

-e AGENT_VAULT_TOKEN="av_agt_ (...)": the token you got when you added an agent in Agent Vault.
-e AGENT_VAULT_ADDR="http://host.docker.internal:14321": host.docker.internal is used when an app in a container wants to access to the container’s host machine. In this article, we expose Agent Vault’s ports to the host machine.

Select Full setup and press the Enter key.

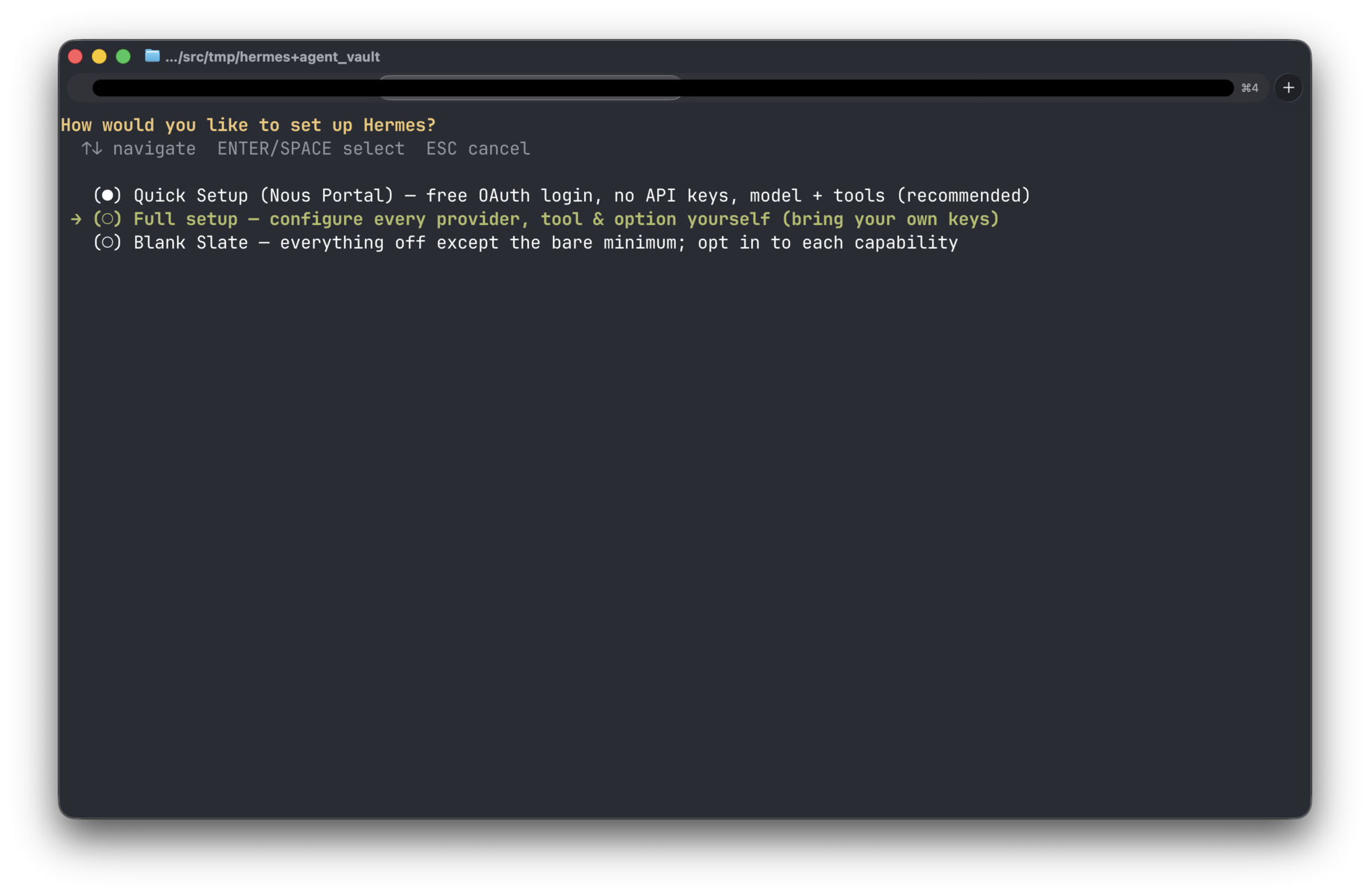

Hermes Agent - Setup - How

Select LM Studio and press the enter key.

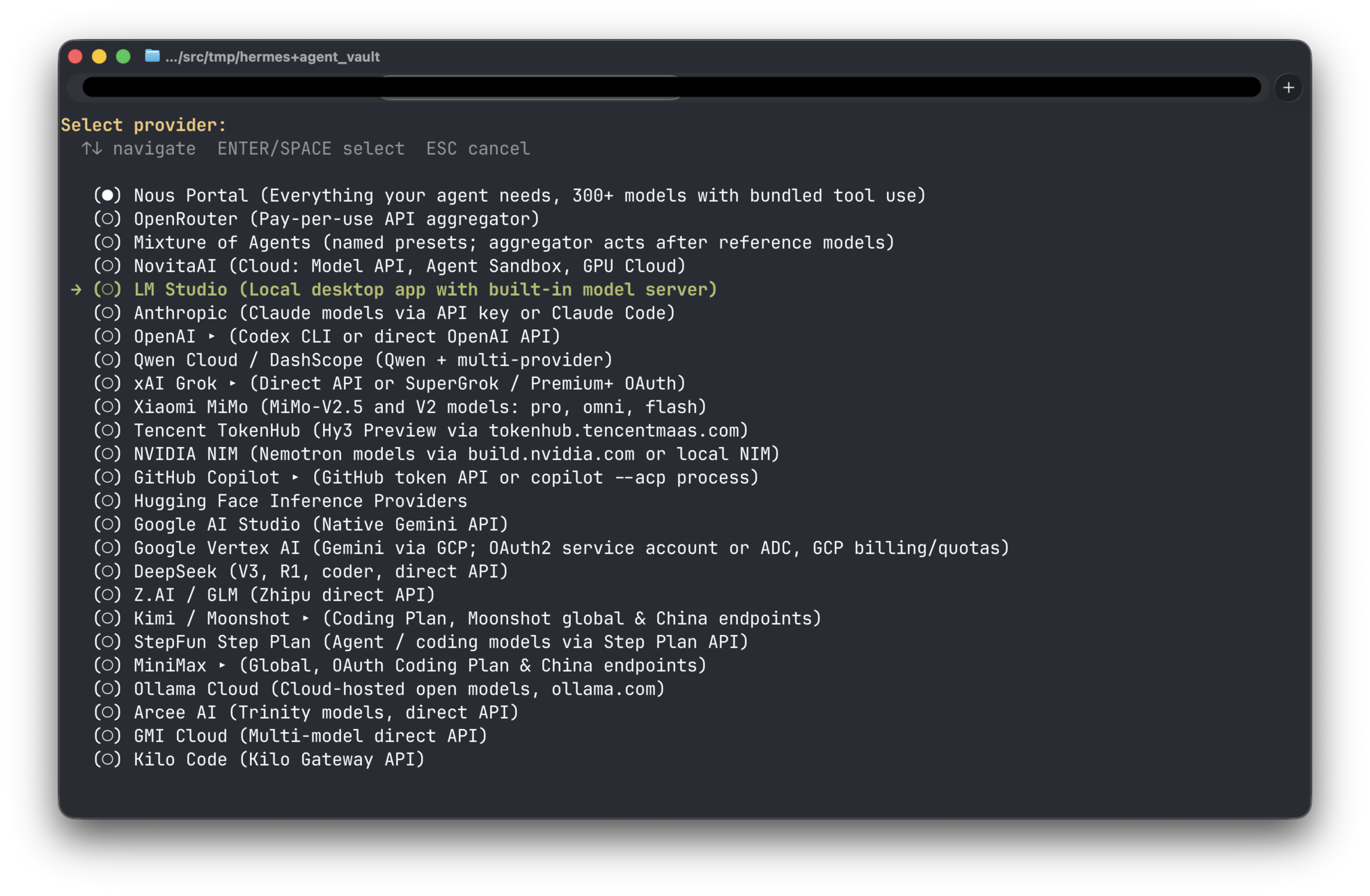

Hermes Agent - Setup - Select provider

You will be asked to enter LM Studio info.
Enter the values as below:

LM_API_KEY: __lm_studio_token__
Base URL: http://host.lima.internal:1234/v1

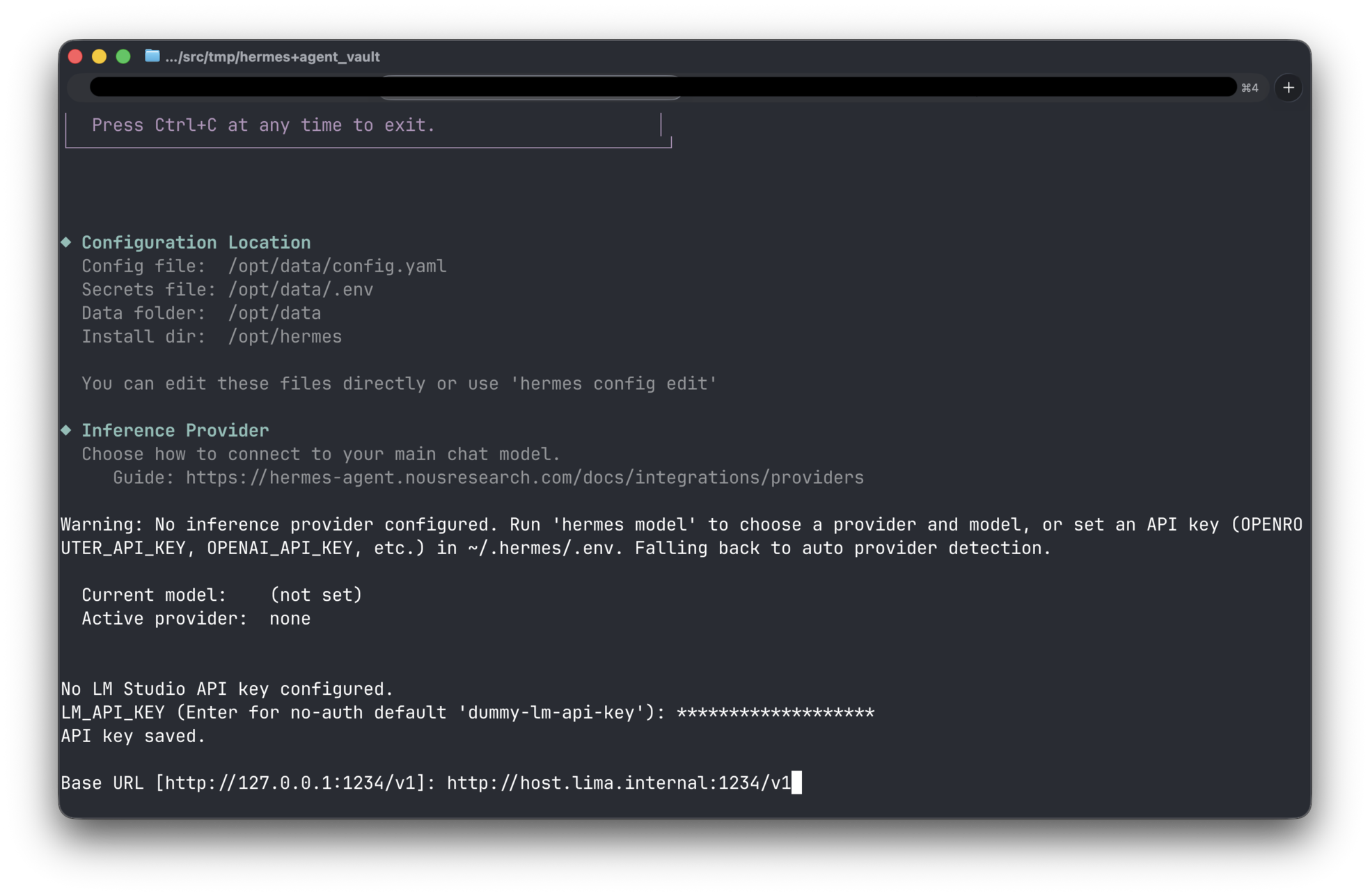

Hermes Agent - Setup - Select terminal backend

Select default model you want to use.

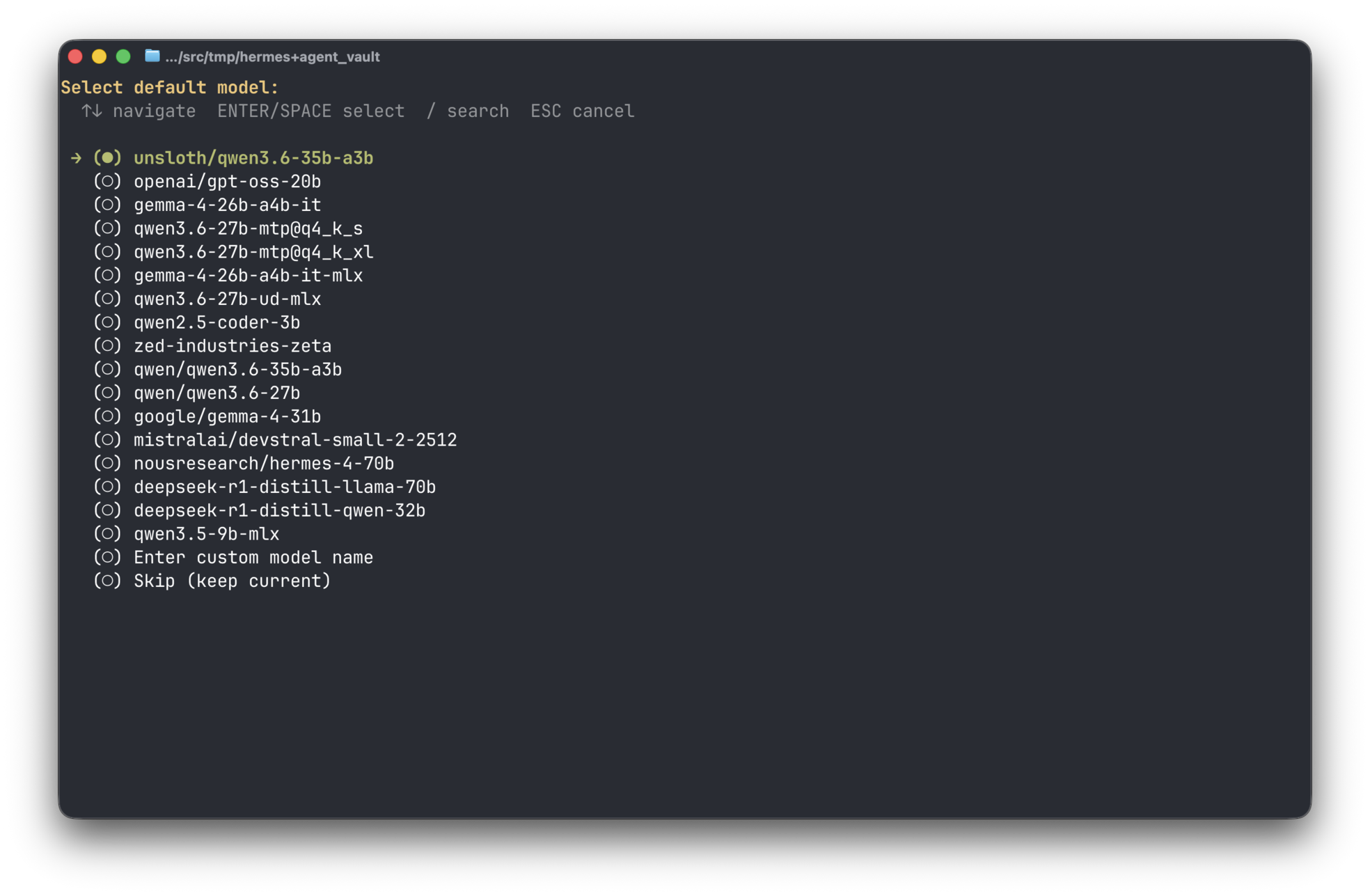

Hermes Agent - Setup - Select default model

Configure the other settings as you need.
Use default settings if you don’t know.

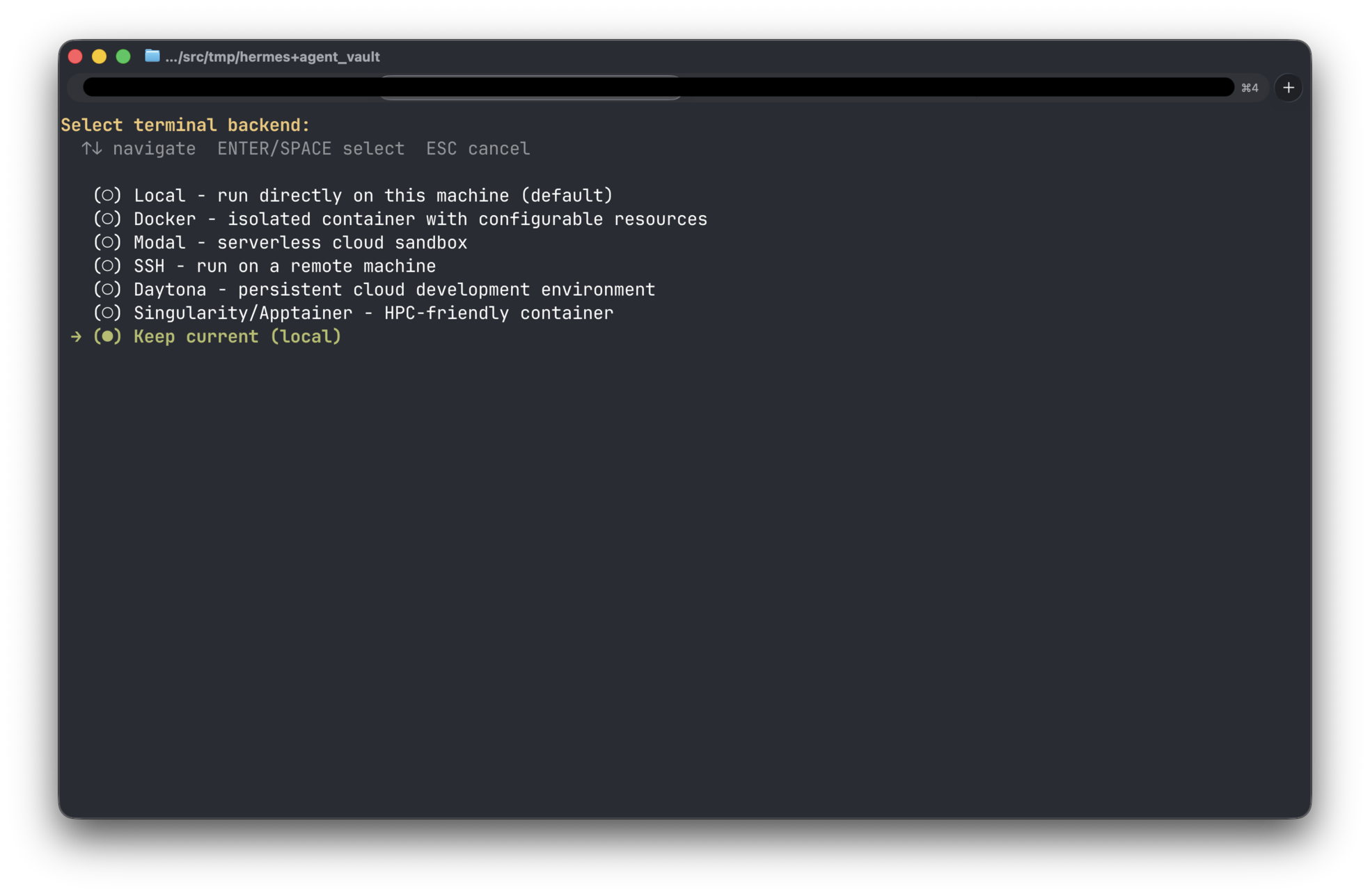

Hermes Agent - Setup - Other Settings 1

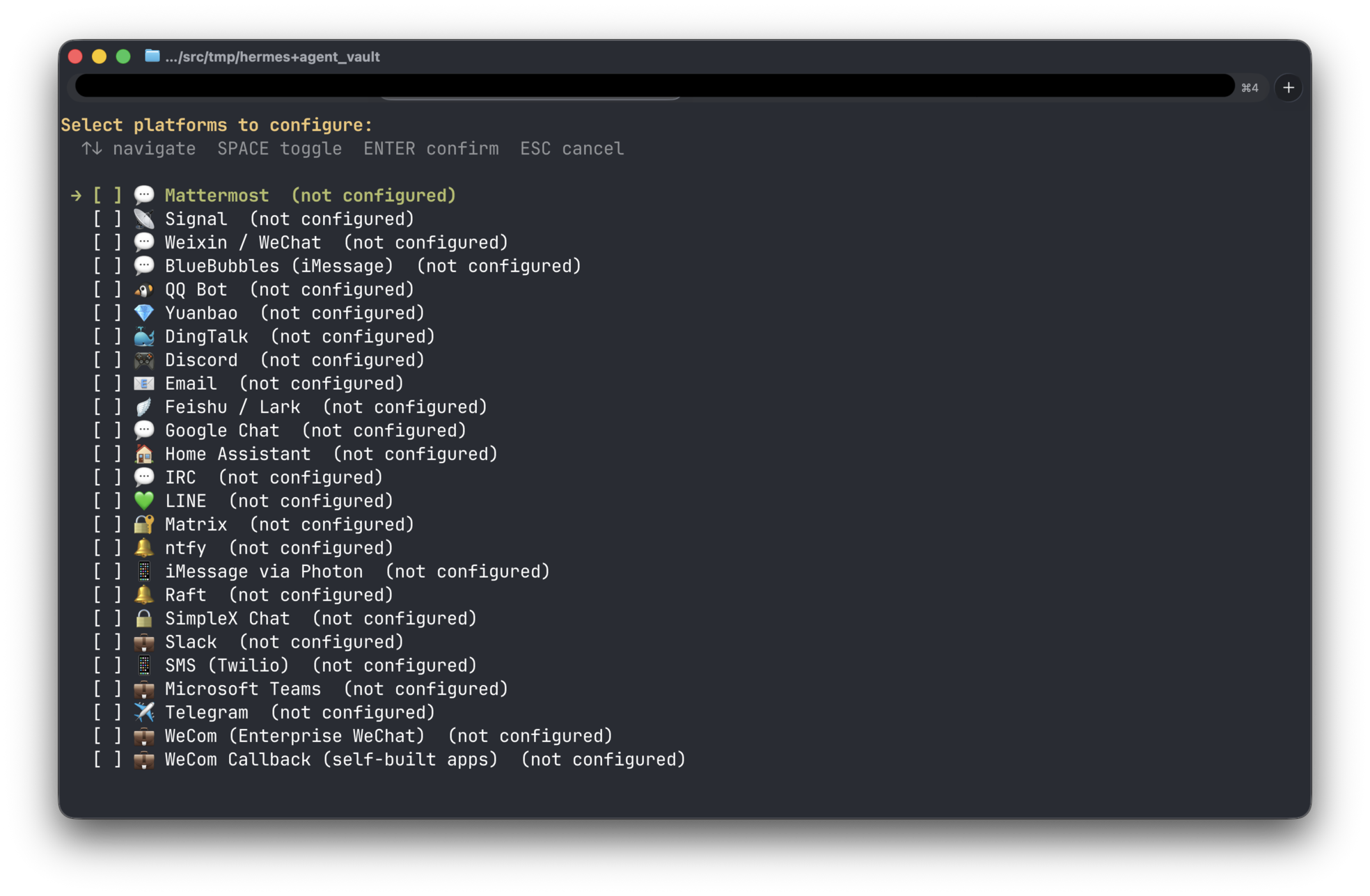

Hermes Agent - Setup - Other Settings 2

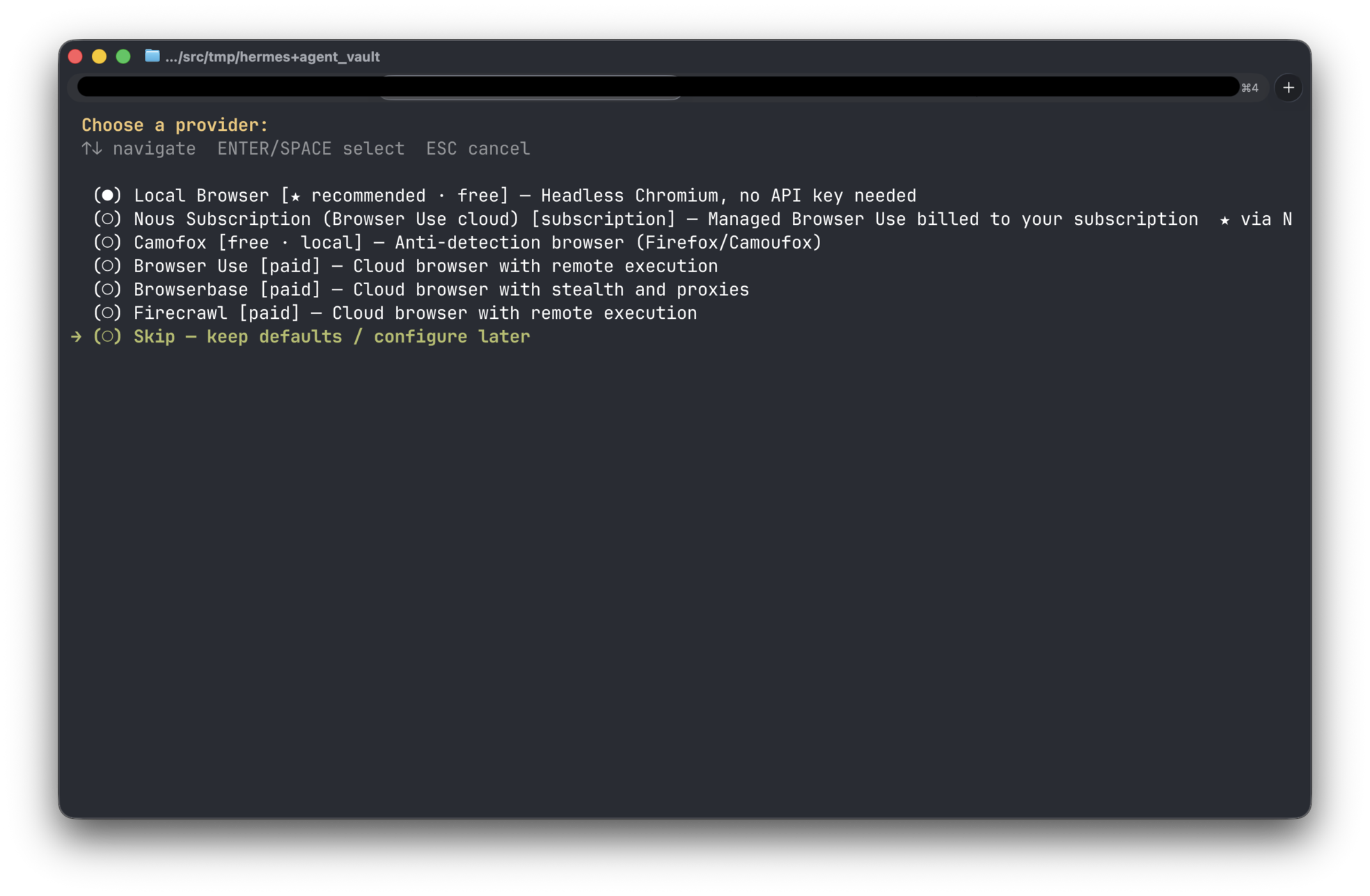

Hermes Agent - Setup - Other Settings 3

After finishing the setup, run Hermes Agent and say hello to the agent.

docker run -it --rm \
  -e AGENT_VAULT_ADDR="http://host.docker.internal:14321" \
  -e AGENT_VAULT_TOKEN="<AGENT_VAULT_TOKEN>" \
  -e AGENT_VAULT_VAULT="my-project" \
  -v hermes-agent:/opt/data \
  -v ./:/workspace \
  -w /workspace \
  hermes-agent-vault

A note on a parameter:

./:/workspace, -w /workspace: These are settings for the working directory.

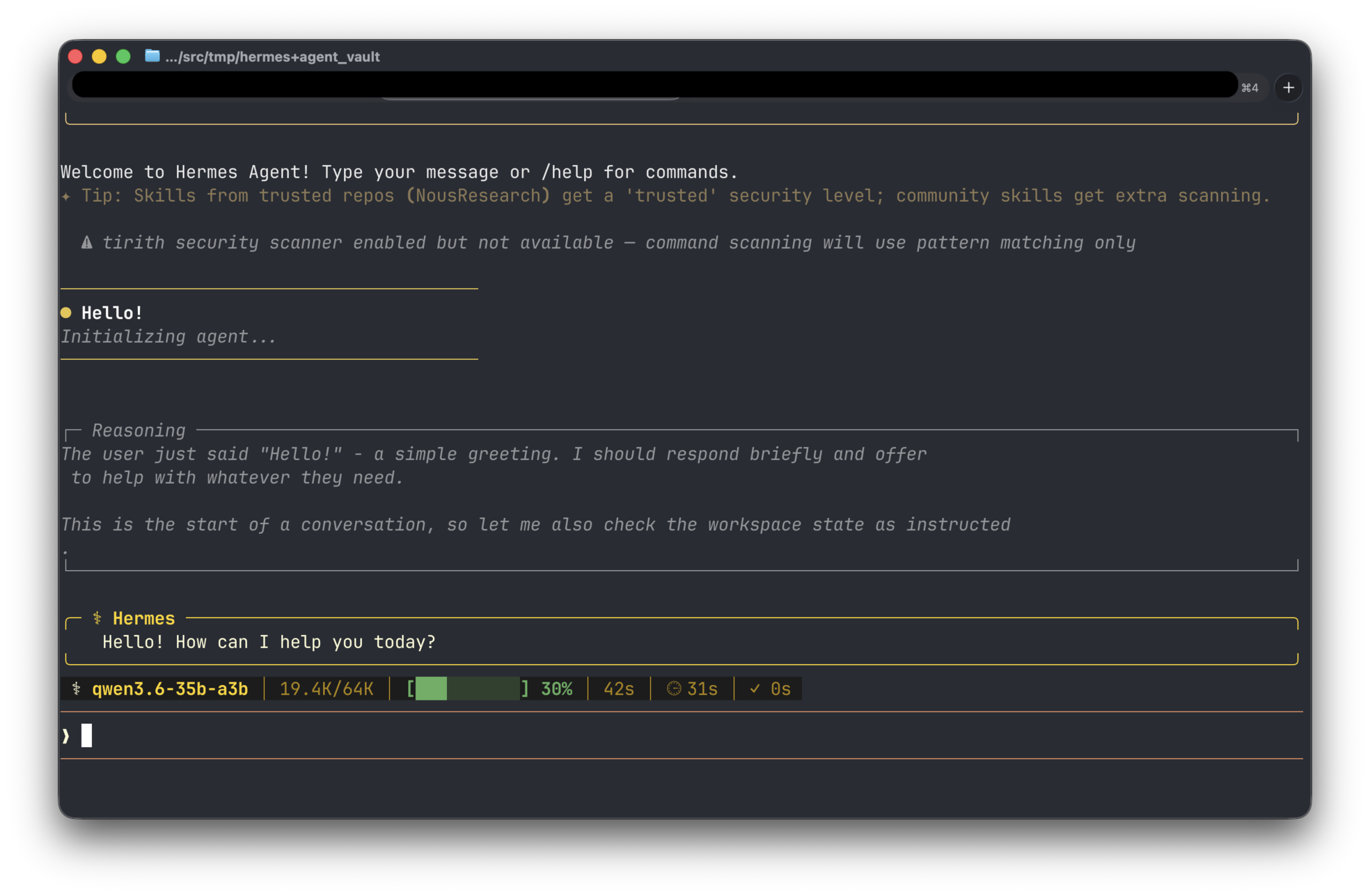

Hermes Agent - Hello

LM Studio will automatically load the model and answer your question.
